BOW-TayJyi Mate Introduction

Introduction

Introduction：
To improve environmental friendliness and energy saving for consumer, Tayjyi also promotes a matching accessory; the Tayjyi Mate remote control. Consumer can easily control the Tayjyi flow controller (installed on an outside balcony) from indoors through wireless transmission. This enables users to change the set temperature according to personal preference, force activate the solenoid valve and switch to a more energy saving mode, or to force shutoff the solenoid valve to save even more. When not using hot water, the display can be used as a reference for outdoor temperature or as a small, convenient electronic clock.

NCC ID：CCAJ14LP3010T3

FCC ID：2ACVZ-BOW-TJMATE

Push Buttons Function：
【Power】：Hold to Turn ON/OFF Tayjyi Mate Wireless Remote Controller Power.
【CONN】：Click to Wake up Tayjyi Mate for Wireless Communication. Hold to Control TAYJYI Hot Water Flow Controller.
【C/F/▲】：Under Standby Mode, Click to Change ﹝℃﹞/﹝℉﹞. Hold to Force Powering On EM Valves in TAYJYI Hot Water Flow Controller. Under Setup Mode, Increase Setup Value.
【D/T/▼】：Under Standby Mode, Click to Change Degrees﹝℃/℉﹞/Time﹝XX：XX﹞. Hold to Force Powering Off EM Valves in TAYJYI Hot Water Flow Controller. Under Setup Mode, Decrease Setup Value.

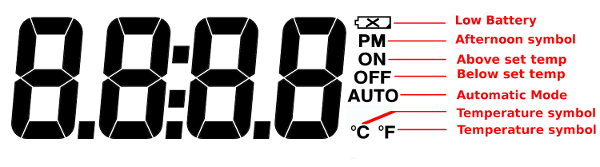

Tayjyi Mate Display symbols：
